EXTREME 1

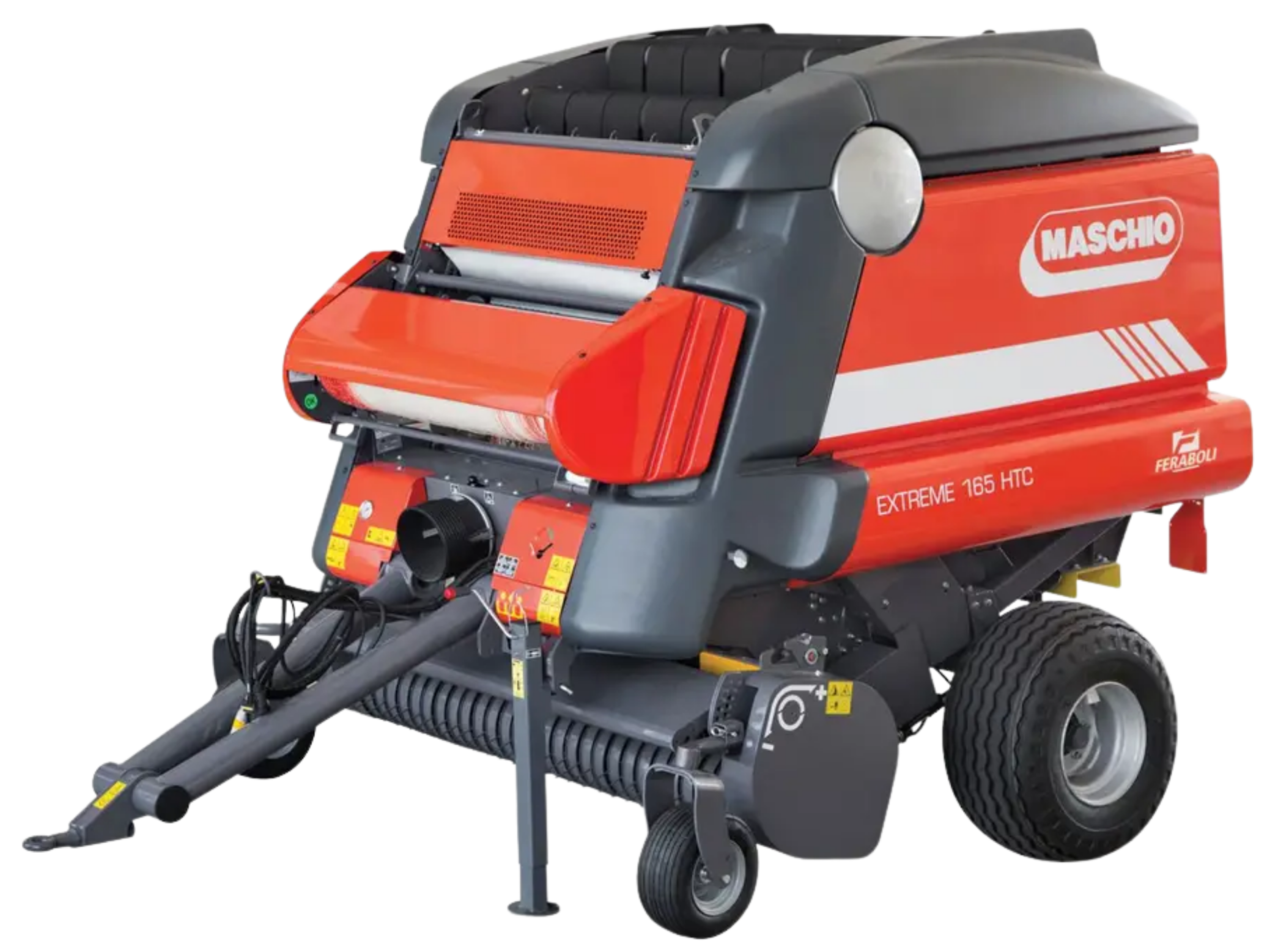

EXTREME 1 is the variable chamber round baler equipped with the mechanical variable geometry system, to define the formation and density of the bale core. Easy to use machine that can be combined with low power tractors, EXTREME 1 ensures great hourly yield and thanks to the high bailing pressures up to 195 bar ensures perfectly formed, compact and heavy weight bales up to 165 or 180 cm in diameter depending on the model.
Ø ball (min) 0.5 m
Pickup width 2.2 m
No. of straps 6
Variable chamber and geometry
The management of the internal geometry of the variable chamber is made possible by a double rocker arm controlled by hydraulic cylinders. The first defines the pressure and the diameter of the bale with the possibility of creating a pre-chamber with zero pressure up to 110 cm, while the second rocker automatically compensates the tension of the six clinched belts during the formation of the bale.
Pre-chamber up to 110 cm
EXTREME 1 has the possibility to manage the size of the pre-chamber in a mechanical way thanks to a pin system placed directly on the sides of the round baler, with 4 positions, which lock the main rocker arm in the desired position, creating a pre-chamber from a minimum of 50 cm to a maximum diameter of 110 cm, to be chosen according to the humidity and the type of product to be collected.
Pick-up
The large 220 cm pick-up with pivoting wheels, with rake or flow conveyor plate, allows to operate even in the presence of not perfectly regular and abundant windrows. Harvesting of the product is delicate with any type of forage, preserving the leaves, the most protein-rich part of legumes, on the stem. The machine can be equipped with a windrow press roller.
Feeding systems
EXTREME 1 is polyvalent, in fact 3 feeding systems can be requested: HTI with alternative feeder, HTR rotary feeder, HTC rotary feeder with 13 knives with 77 mm cutting length. The stars of all rotors are made of high strength HARDOX, to minimise wear during work.
Special Contents
Easytronic terminal
Easytronic terminal
Through an intuitive terminal in the cab it is possible to manage and control alarms, sensors, binding and activation/deactivation of the knives. Control from the cab makes the operator’s job even easier and faster.
Why choose EXTREME 1
EXTREME 1 is the round baler suitable for those who demand maximum performance, with a competitive price but without renouncing variable geometry technology. This system in fact allows to choose the best configuration of the pressing chamber according to the collected product and its humidity. The machine is simple, reliable and requires little maintenance.
Standard Equipment - EXTREME 1
TRANSMISSION
Wide angle PTO shaft with shear bolt (HTR-HTC versions)
Wide angle PTO shaft with slip clutch (HTI version)
PTO 540 rpm
Hydraulic bale compression with manual density adjustment
6 clinched belts, 179 mm width
Loading sensors
CONTROL GROUP
Multifunction electronic control unit EASYTRONIC
TYING SYSTEM
Net tying system
FEEDING SYSTEM
Pick-up 220 cm with 4 tooth bars with pivoting wheels (HTI version)
Pick-up 220 cm with 4 tooth bars with pivoting wheels and crop roller (HTR-HTC versions)
LUBRICATION
Automatic chain lubrication
BALE COMPRESSION SYSTEM
Variable chamber with pre-starting chamber
Bale diameter electronic control
Mechanically variable geometry (manual adjustment in 4 positions)
FRAME
Adjustable draw bar
Couple of shrinking cups
LED road lights
Tires 400/60-15,5
