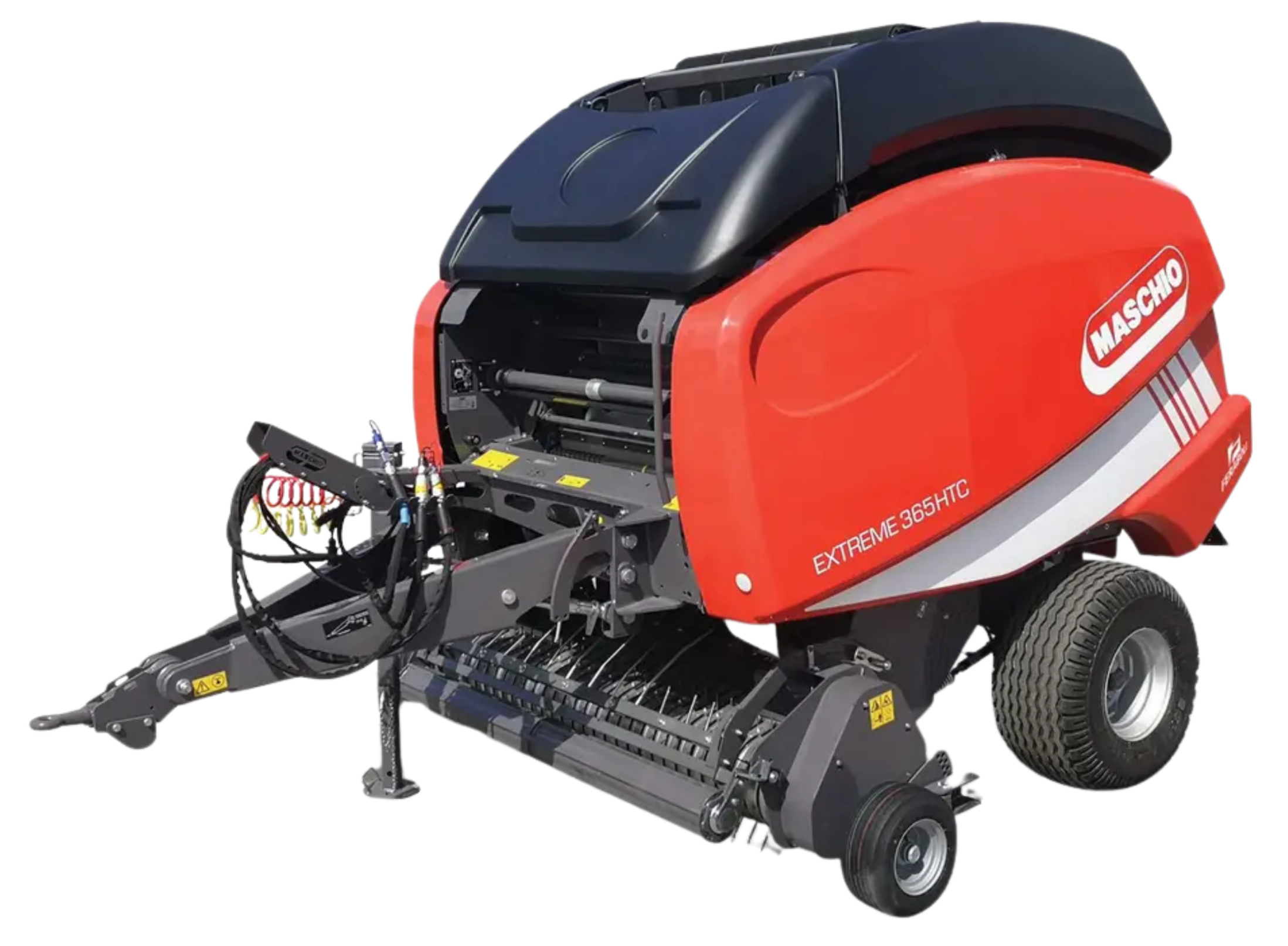

EXTREME 3
EXTREME 3 is the round baler with variable chamber and geometry, synthesis of high performances and maximum attention to product collection. The double rocker arm system, for the variable chamber and geometry management, with pressure up to 210 bar, allows to collect any type of product and level of humidity, for optimal storage.
Exceptional durability, great working capacities, perfectly formed, compact and heavy bales up to 165 cm diameter make EXTREME 3 a profitable investment, also thanks to the possibility of setting it up with 4 feeding systems.
Ø ball (min) 0.5 m
Pickup width 2.2 m
No. of straps 4
Variable chamber and geometry
The variable chamber management is made possible by a double rocker arm controlled by hydraulic cylinders. The first defines the pressure and the diameter of the bale with the possibility of creating a pre-chamber with zero pressure up to 90 cm, while the second rocker automatically compensates the tension of the four ENDLESS clinched belts during the formation of the bale. This allows to obtain enormous advantages for those who are attentive to the product quality.

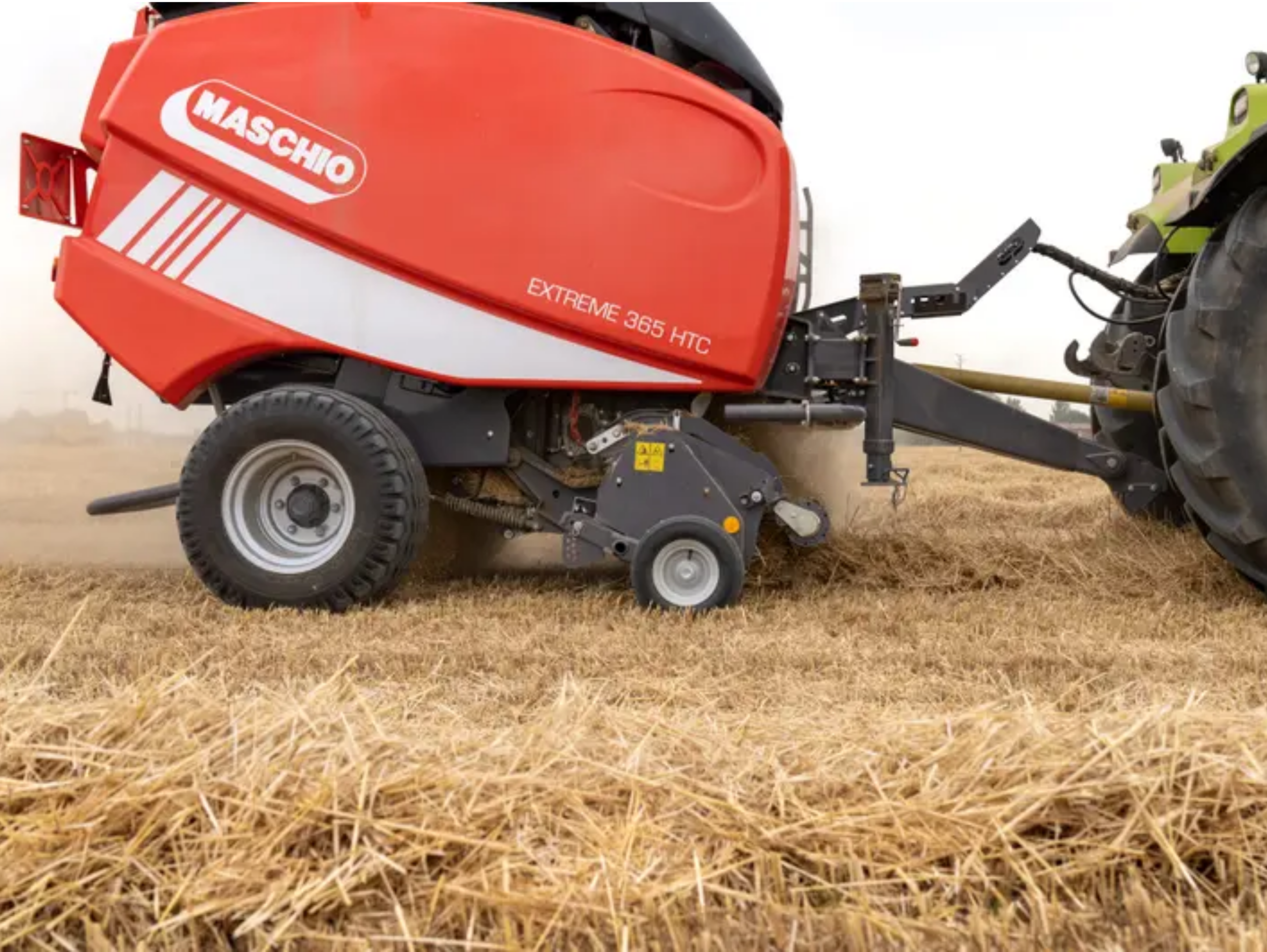

Pick-up
The large 220 cm pick-up with pivoting wheels allows to operate even in the presence of not perfectly regular and abundant windrows. The harvest of the product is delicate with any type of forage, even in the case of leafy product. The machine is standard equipped with a windrow press roller.
Reinforced chains
To respond to the various needs of contractors who stress machines for long time, EXTREME 3 is equipped with 1 ”¼ reinforced chains capable of withstanding the heaviest stresses. The automatic chain oiling system ensures a machine that is always well greased and performing.
Feeding systems
EXTREME series 3 is versatile, in fact there are 3 feeding systems that can be requested: HTR rotary feeder, HTC rotary feeder with 15 knives and HTU rotary feeder with 25 knives. The stars of all rotors are made of high strength HARDOX, to minimise wear during work.
High strenght belts
Designed for true professionals, EXTREME 3 is equipped with 4 ENDLESS belts, thanks to which optimal resistance is ensured in any condition, even at high pressures and speeds. Covering the entire width of the bale during formation reduces product losses and preserves its quality. The two motorized rollers ensure perfect rotation of the belts even in the case of very wet product.
Drop floor
To increase productivity on field and reduce possible downtime, EXTREME 3 has been designed with a drop floor. This system, which temporarily increases the size of the machine’s inlet, allows to quickly solve any blockages due to excess product, facilitating the work of the operator who can manage and solve the problem from tractor cab.
Special Contents
The winning pre-chamber concept
Drop floor
Crop roller
Blades safety
Automatic oiling
Automatic greasing
The winning pre-chamber concept
Being able to keep the balance in an elevated position and create the pre-chamber provides enormous advantages.
The low pressure in the middle part of the bale allows excess moisture to escape, helping to disperse heat in the event of fermentation.
The pre-chamber enhances the quality of the product and provides enormous advantages:
- Versatility in managing the type of product, even according to the level of humidity;
- Optimal conservation of nutritional and protein qualities;
- Efficient evaporation of humidity;
- Limited formation of mold and abnormal fermentation.
Drop floor
To increase productivity on field and reduce possible downtime, EXTREME 2 and EXTREME 3 have been designed with a new drop floor. This system, which temporarily increases the size of the machine’s inlet, allows to quickly solve any blockages due to product excess, facilitating the work of the operator, who can manage and solve the problem from tractor cab.
Crop roller
The crop roller has the function of maintaining a homogeneous and constant flow of product towards the feeding system, reducing possible clogging.
Blades safety
Each blade is independent and equipped with a spring safety system which intervenes during the collision with foreign material, mainly stones, without damaging the cutting system (HTC -HTU version).
Automatic oiling
Automatic chain lubrication is managed by an oil pump that is mechanically activated every time the tailgate closes.
Automatic greasing
With the automatic centralized lubrication system, maintenance times are reduced considerably, boosting work efficiency and reducing breakages, ensuring the machine is always perfectly greased.
Why choose EXTREME 3
Designed for true professionals, EXTREME 3 combines robustness and high pressing performance—up to 210 bar—in a single machine. The variable chamber, which can also create a zero-pressure pre-chamber, allows for the collection of different types of material with varying moisture levels, always ensuring optimal results. The ENDLESS belts contribute to a long working life for this machine.
Standard Equipment - EXTREME 3 ISOTRONIC
TRANSMISSION
Wide angle cam-shaft
PTO 540 rpm
4 endless closed-loop belts with width 277 mm
CONTROL GROUP
Complies with ISO 11783 standard
TYING SYSTEM
Net tying system
Net stock compartment
FEEDING SYSTEM
Pick-up 220 cm with 4 tooth bars with fixed wheels and crop roller
Rotor TOPCUT: 15 knives, cutting length 77 mm (version HTC)
Rotor (version HTR)
Rotor ULTRACUT: 25 knives, cutting length 45 mm (version HTU)
Drop floor
LUBRIFICATION
Automatic chain and pick-up lubrication
Manual centralized greasing system
BALE COMPRESSION SYSTEM
Variable chamber with pre-starting chamber
Electronic variable geometry
Hydraulic bale compression with electronic density adjustment
FRAME
Adjustable axle
Couple of shrinking cups
Pick-up support chains
Ladder
LED road lights
Tires 400/60-15,5
Standard Equipment - EXTREME 3
TRANSMISSION
Wide angle cam-shaft
PTO 540 rpm
4 endless closed-loop belts with width 277 mm
CONTROL GROUP
Multifunction electronic control unit ICON
TYING SYSTEM
Net tying system
Net stock compartment
FEEDING SYSTEM
Pick-up 220 cm with 4 tooth bars with fixed wheels and crop roller
Rotor TOPCUT: 15 knives, cutting length 77 mm (version HTC)
Rotor (version HTR)
Rotor ULTRACUT: 25 knives, cutting length 45 mm (version HTU)
Drop floor
LUBRIFICATION
Automatic chain and pick-up lubrication
Manual centralized greasing system
BALE COMPRESSION SYSTEM
Variable chamber with pre-starting chamber
Electronic variable geometry
Hydraulic bale compression with electronic density adjustment
FRAME
Adjustable axle
Couple of shrinking cups
Pick-up support chains
Ladder
LED road lights
Tires 400/60-15,5
