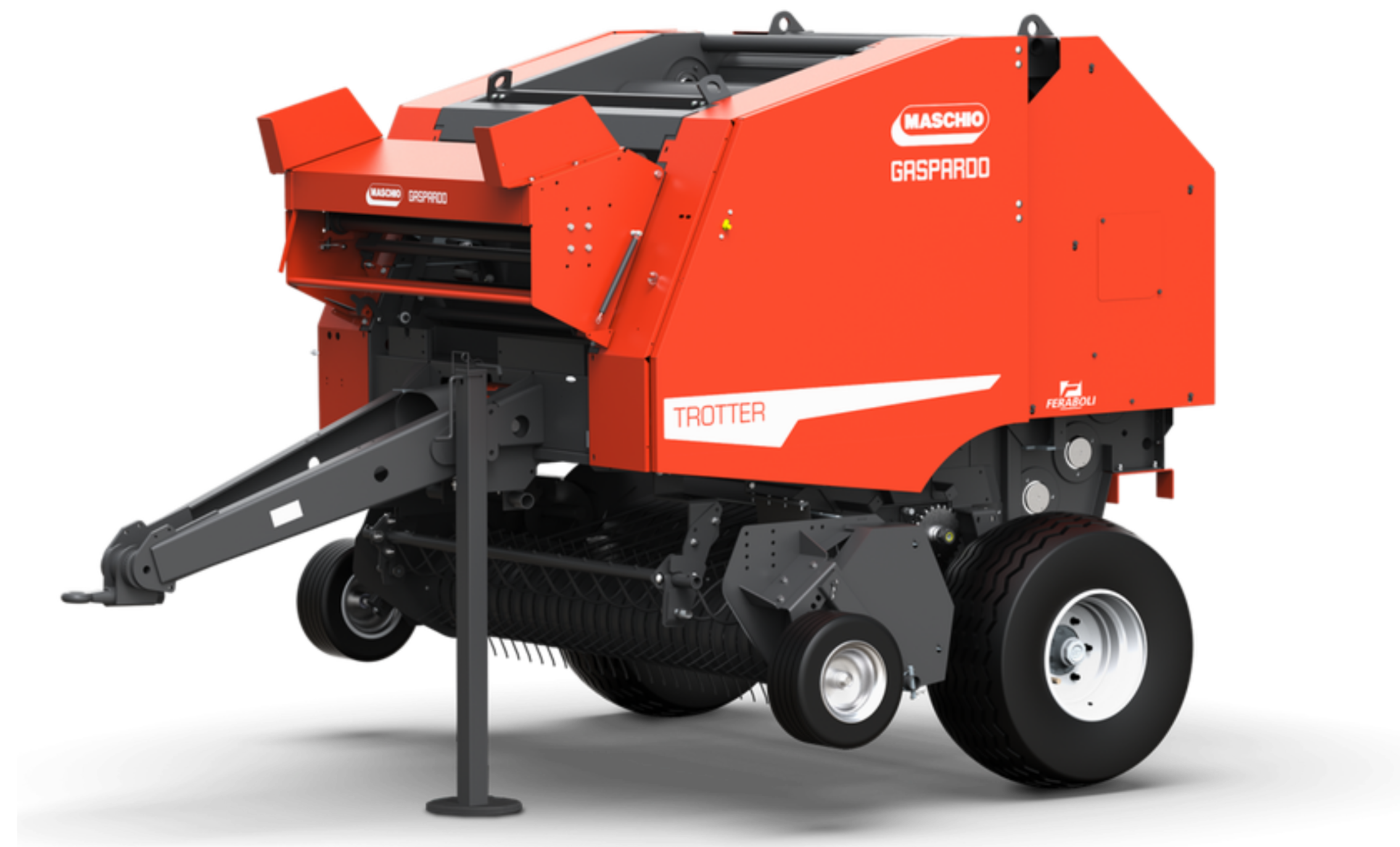

TROTTER
TROTTER 125 is the entry level model of fixed roller balers capable of summarizing ease of use and high production capacities. TROTTER has robust mechanics, with hardened gears and roller pins: a chamber of 18 ribbed rollers capable of forming dense and regularly shaped bales with a diameter of 125 cm. This baler is well equipped with 220 cm pick-up, automatic chain oiling and the possibility of choosing between 3 feeding systems.
Ø bale (min) 1.25 m
Pickup width 2.2 m
No. of bars/rolls 18

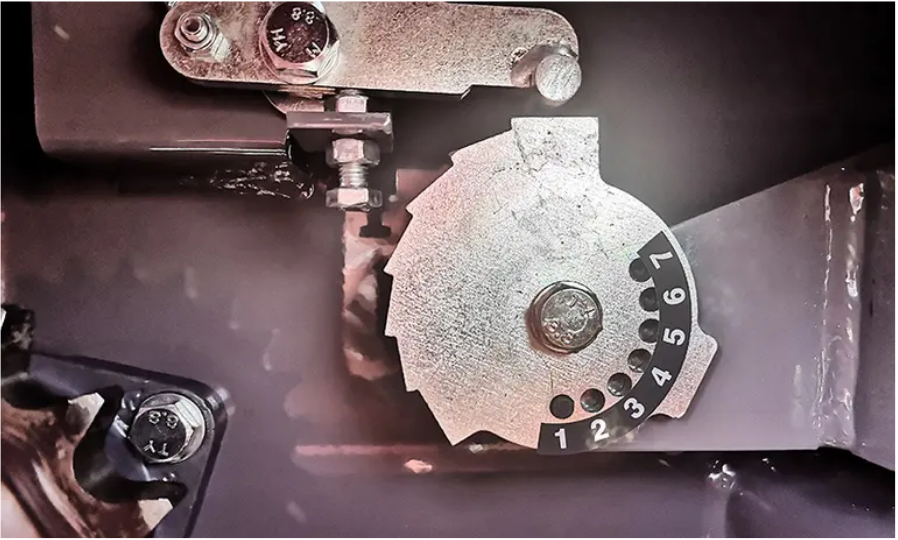

Manual pressure adjustment
Depending on the crop being harvested, the chamber pressure can be manually adjusted to seven different positions. The pressure selectors are located at the rear of the machine on both sides.
3 power systems
TROTTER offers maximum harvesting versatility thanks to three feeding systems: alternative feeder, TOPCUT (13 knives), and ULTRACUT (25 knives). Cutting the product ensures greater harvesting efficiency and greater use of the baling chamber.

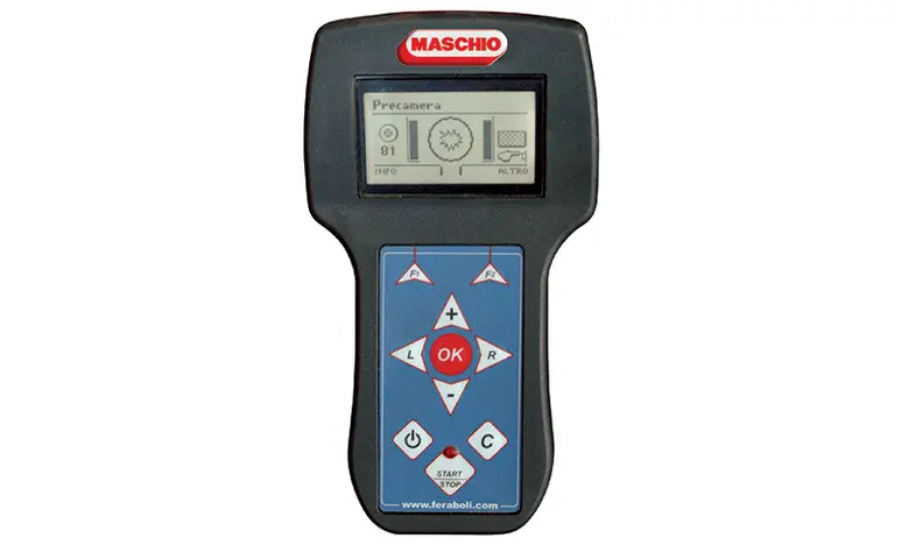

EASYTRONIC terminal
An intuitive in-cab terminal allows you to manage and control alarms, sensors, binding, and blade activation/deactivation. Control from the cab makes the operator’s job even easier and faster.
Special Contents
Fixed chamber, maximum weight and density
Minimum impact on the soil
Manual baling adjustment
Easytronic terminal
Automatic oiling
Fixed chamber, maximum weight and density
The peculiarity of the fixed chamber is the creation of soft-heart bales, with the classic star shape. This is determined by the fact that the product flows into the chamber gradually occupying all the space, with greater density towards the outside. With wet fodder this guarantees enormous advantages, such as the loss of moisture for better conservation.

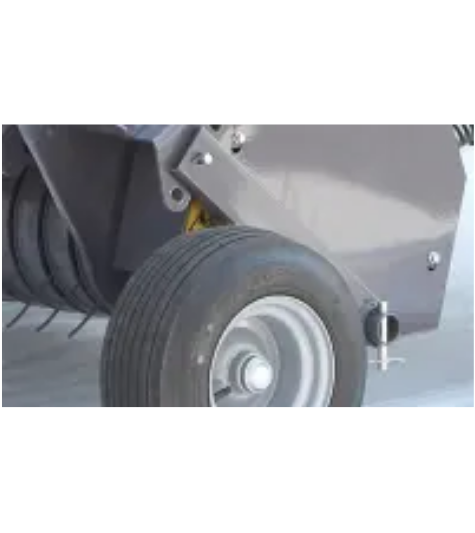

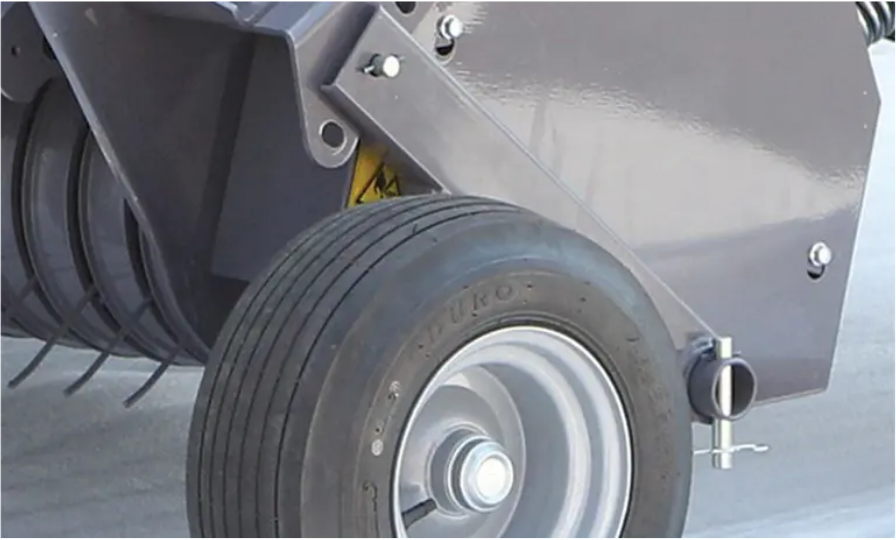

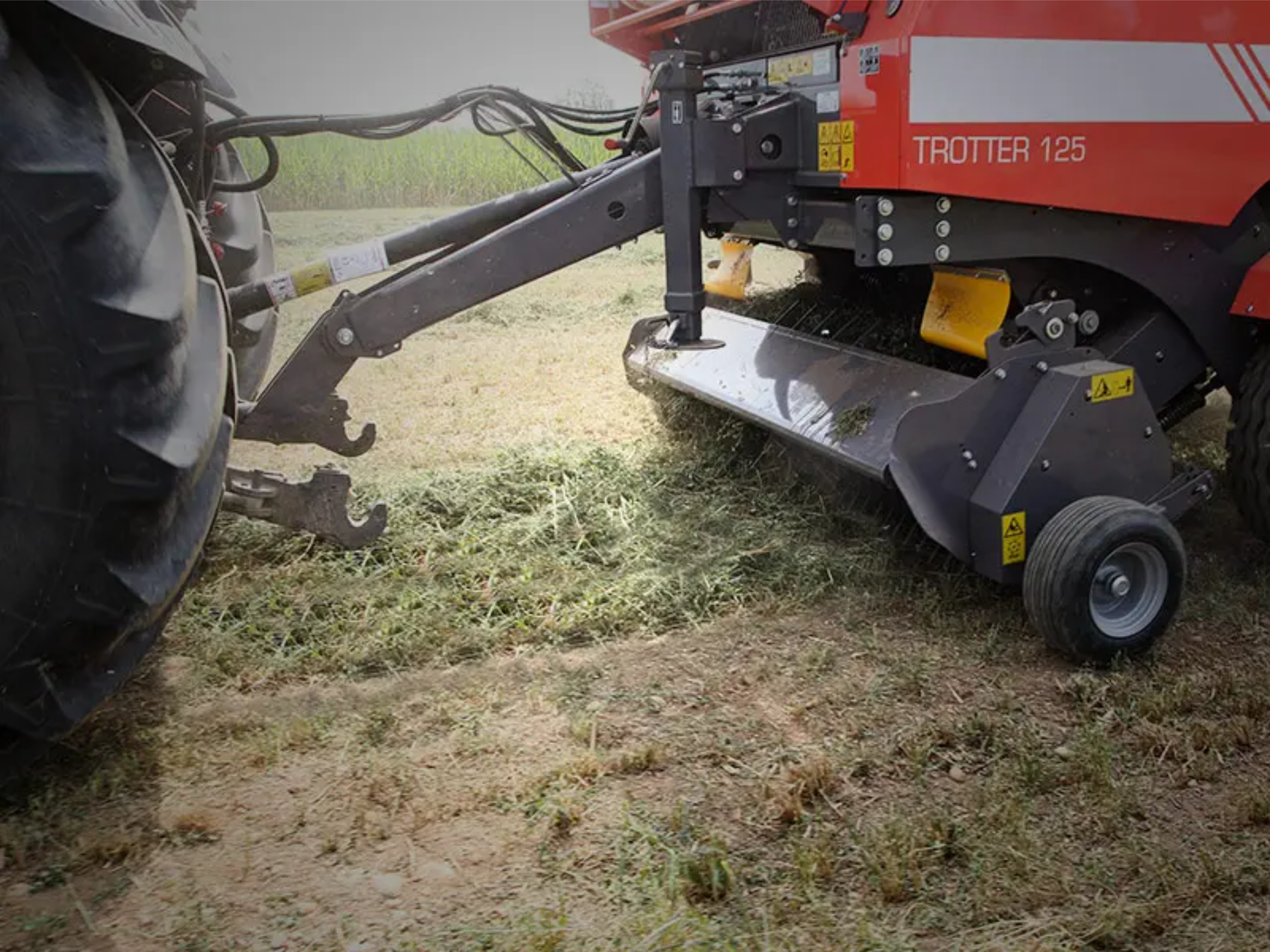

Minimum impact on the soil
Thanks to the rubber tyres, the pickup is light on the soil, ensuring a perfectly balanced harvesting and excellent conservation of the turf. The height adjustment is quick and easy, thanks to the movement of the pins in the different holes.

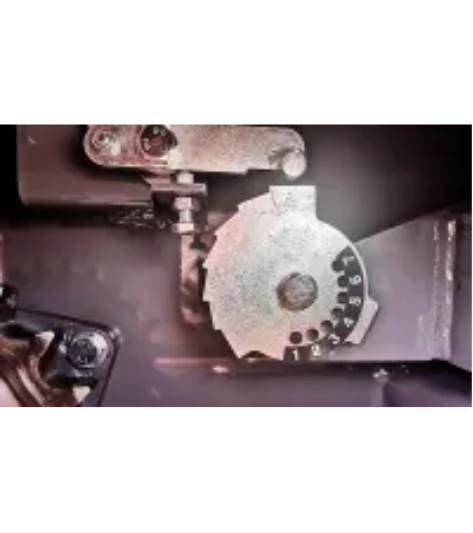

Manual baling adjustment
Depending on the product to be collected, it is possible to manually vary the pressure of the chamber through seven positions. The pressure selectors are located at the rear of the machine on both sides.

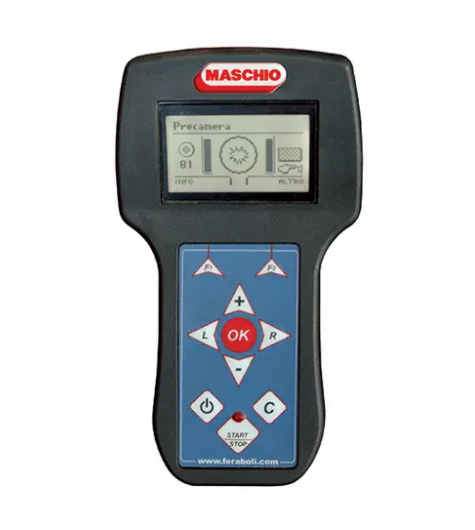

Easytronic terminal
Through an intuitive terminal in the cab it is possible to manage and control alarms, sensors, binding and activation/deactivation of the knives. Control from the cab makes the operator’s job even easier and faster.

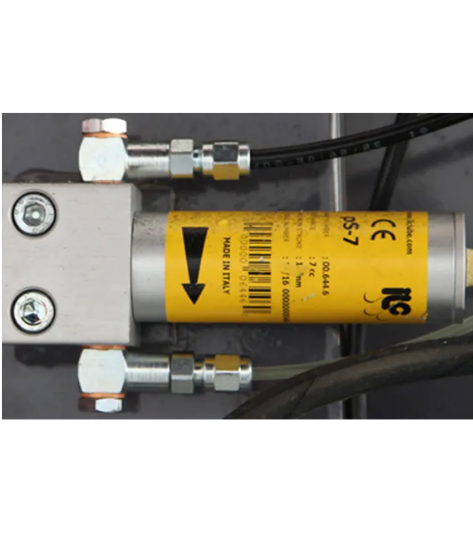

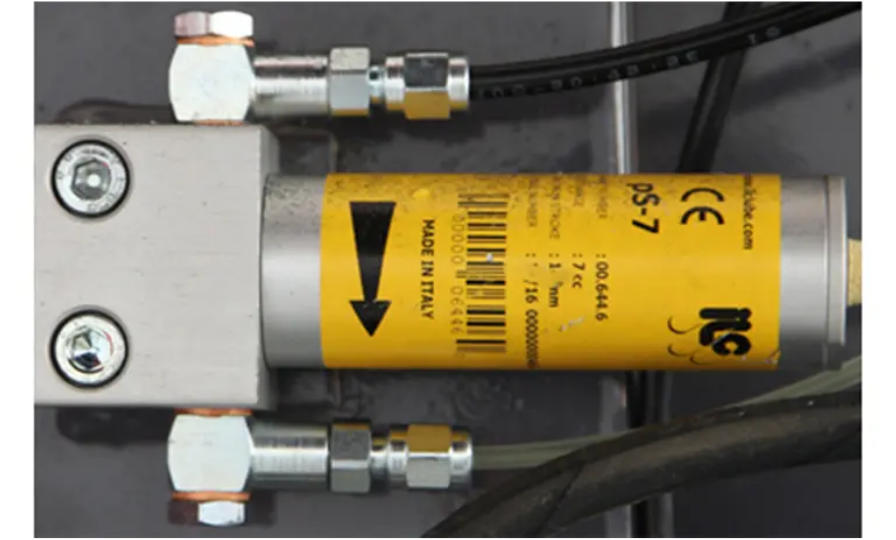

Automatic oiling
Why choose TROTTER

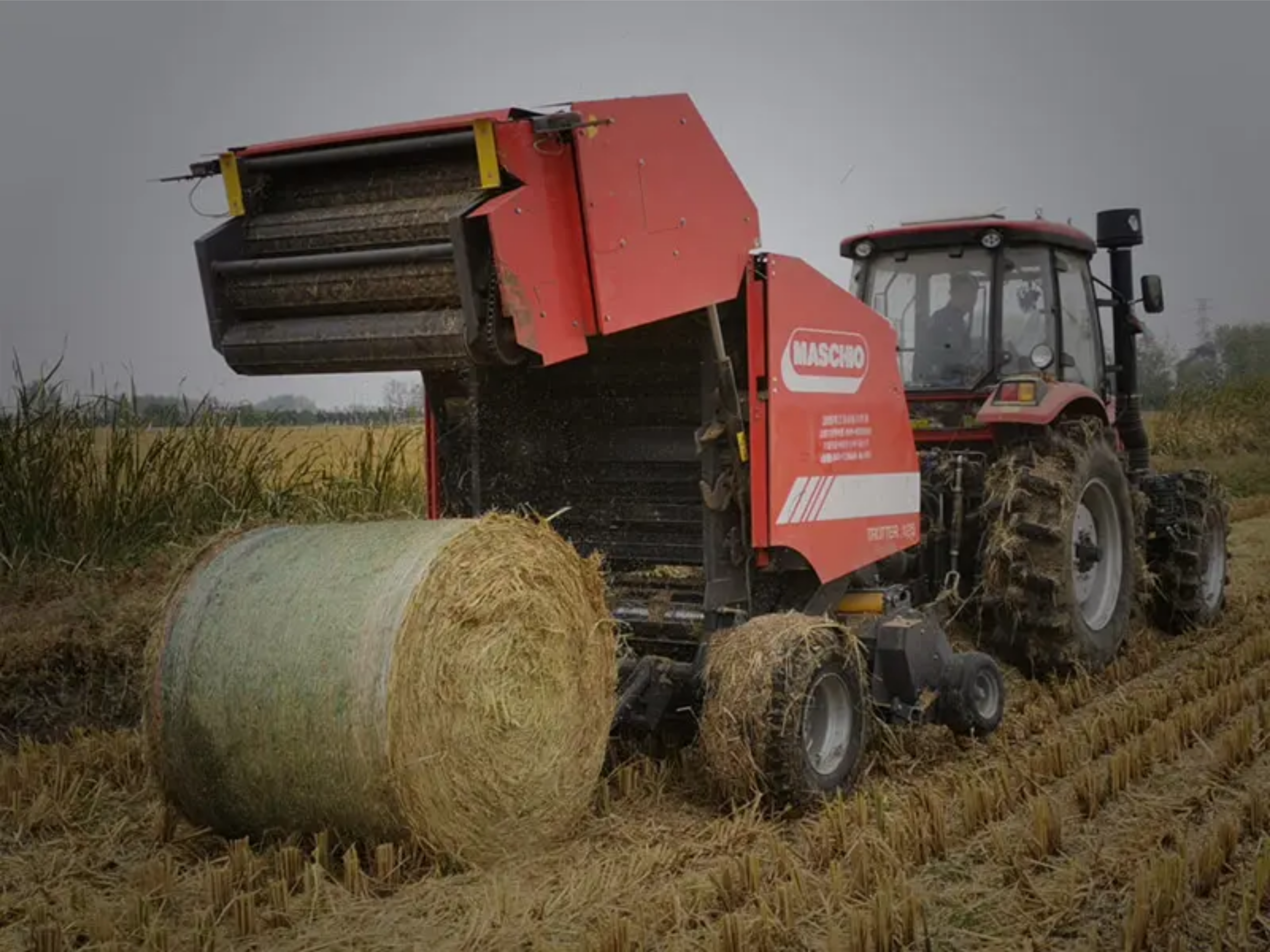

The TROTTER is a versatile round baler, agile on both flat and hilly terrain, gentle on hay, perfect for moist forage, yet efficient even with difficult crops like stalks and straw. An excellent compromise between quality and reliability.

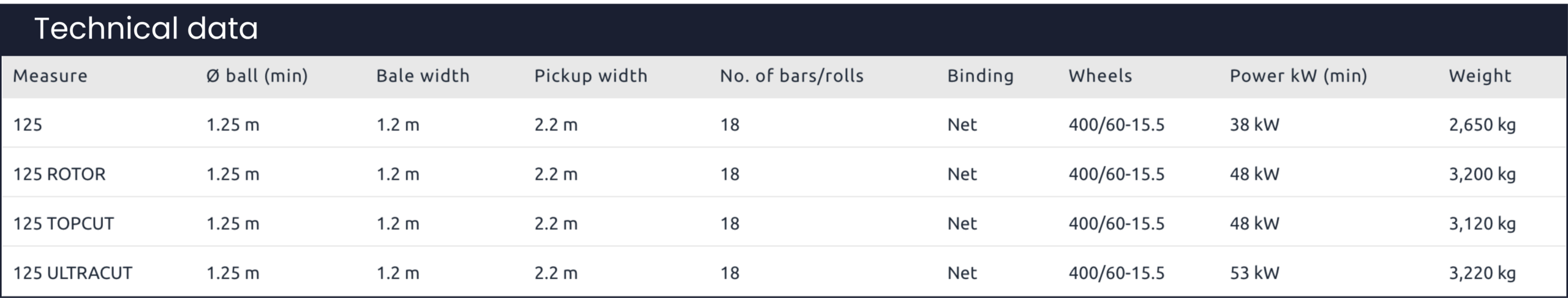

Technical data - TROTTER
Standard equipment - TROTTER
TRANSMISSION
Homokinetic cardan shaft with shear bolt
PTO 540 rpm with freewheel
Mechanical bale pressing (manual adjustment with 7 positions)
CONTROL GROUP
EASYTRONIC multifunction electronic control unit
BINDING SYSTEM
Net binding system
Spare roll holder compartment
FEEDING SYSTEM
220 cm pick-up with 4 tine bars with fixed wheels
LUBRICATION
Automatic chain lubrication
BALING SYSTEM
Fixed chamber with 18 rollers
CHASSIS
Road lights
400/60-15.5 tyres
